Rubber band switches



These switches are like the targets used to score points. Any rubber between 2 pins can be used for this switch.

You can see one on the right side, between the red pins and behind the dodgy rubber band.

image_thumb[2]



This switch is a variant of the target switch and the below playfield part is the same.

rubberswitch1_thumb

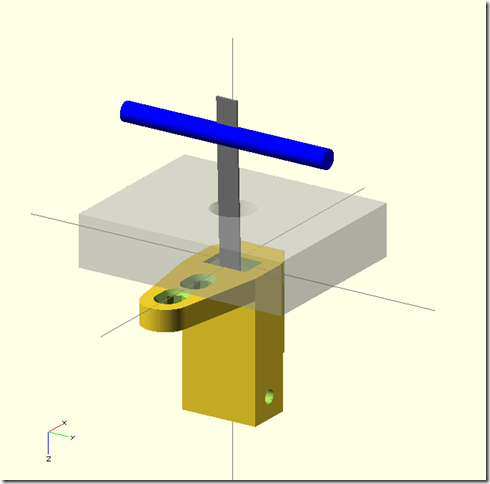

It uses a longer metal spring compared to the target. The blue part is the rubber band. Grey is the spring steel lever.



rubberswitch2_thumb

View from the other side.

tn_IMAG1868_thumb[1]

Switch mounted on a test board. The metal tab is made of spring steel. It is inserted in the plastic pivot part.

tn_IMAG1869_thumb[1]

View from the bottom
